Focus Areas: Full Collection Breakdown, Product Imagery, Motorised Large-Format Applications, Precision Measurement Protocols, and Maintenance Systems.
1. Introduction & Modern Architectural Context
In contemporary residential and commercial architecture, windows are no longer mere functional openings; they are central design features. From wide servery windows opening onto alfresco entertainment areas to soaring floor-to-ceiling casement setups, modern fenestration prioritizes panoramic views and abundant natural ventilation.
Standard fixed insect screens compromise these architectural intentions. They degrade exterior aesthetics, restrict natural light entry by up to 30%, and accumulate airborne particles that are difficult to clean. Retractable fly screens solve this fundamental conflict through dynamic engineering. By housing high-tensile fiberglass or pleated mesh inside an ultra-compact, color-matched aluminum cassette, the screen can be extended smoothly across the opening when protection is needed, and entirely retracted out of sight when not in use.
2. Comprehensive Catalog Analysis: Retract Screens Collections
To accommodate diverse window mechanics and spatial constraints, Retract Screens Australia offers five specialized window screen configurations. Below is a detailed breakdown of each product line, including operational specifications, frame profiles, and direct product imagery.
Category 01: Sliding & Pull Across Roller Insect Screens for Windows
-
Mechanics & Engineering: Designed for horizontal lateral movement, this system features a vertically mounted cassette housing on one side of the window frame. The high-tension spring mechanism maintains uniform mesh tautness across the span, locking securely into a magnetic receiving stile on the opposite side.
-
Best Architectural Applications: Ideal for side-opening casement windows, single-sliding windows, and kitchen servery openings. Its lateral pull action follows the natural ergonomic movement of opening a side-hinged window.
-
Key Technical Highlights: Extruded architectural-grade aluminum cassette (corrosion resistant), heavy-duty PVC-coated fiberglass mesh, and integrated brush seals along upper and lower tracks to prevent insect bypass.

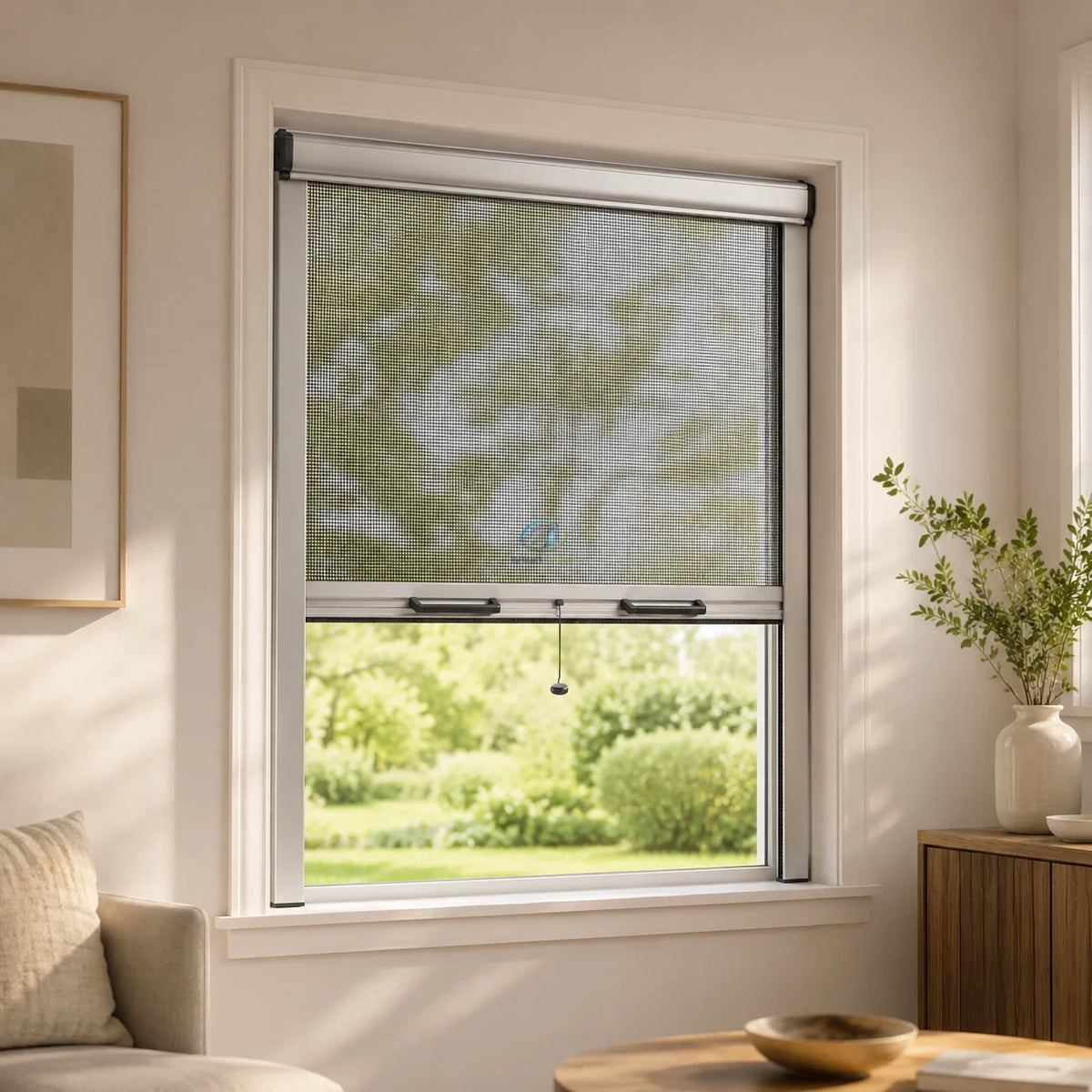

Category 02: Pull-Down Roller Insect Screens for Windows
-
Mechanics & Engineering: Utilizing a top-mounted horizontal cassette, the screen mesh pulls downward vertically and anchors at the window sill using a discreet catch mechanism or magnetic strip. Internal spring dampeners ensure a controlled, soft-close return when released.
-
Best Architectural Applications: Perfect for awning windows, hopper windows, double-hung sash windows, and compact bathroom or laundry openings where side clearance is limited.
-
Key Technical Highlights: Ultra-slim housing cassette (minimizing overhead obstruction), vertical wind-retention side channels, and a weighted bottom rail with a rubber sealing gasket to conform to slight sill irregularities.
Category 03: Pull-Down Pleated Insect Screen for Window
-
Mechanics & Engineering: Rather than rolling around an internal spool, pleated screens utilize a concertina-style folding mesh that stacks neatly against the top cassette. A tensioned cord system guides the pull bar smoothly without spring recoil tension.
-
Best Architectural Applications: Excellent for awning and casement windows where effortless, multi-stop positioning is preferred. Because it does not rely on heavy spring tension, it can be stopped at any point along its travel.
-
Key Technical Highlights: High-density polyester pleated mesh with UV stabilization, wire-guided tracking system, and zero back-tension for feather-light finger operation.
Category 04: Pleated Insect Screen for Window (Single Horizontal)
-
Mechanics & Engineering: Operates horizontally across the window frame using pleated mesh technology. The mesh folds compactly into a slender side profile, eliminating the bulky cylindrical housing required by conventional roll-up screens.
-
Best Architectural Applications: Ideal for medium-to-wide window openings, timber casement windows, and pass-through serveries where a soft architectural aesthetic is desired.
-
Key Technical Highlights: Low-profile bottom guide rail (barrier-free option), durable pleated mesh resistant to creasing and sagging, and customizable frame finishes in Dulux® powder coat colors.
Category 05: Pleated Insect Screen for Double Window
-
Mechanics & Engineering: Incorporates dual opposing side cassettes. Two independent pleated mesh panels extend from the left and right jambs, meeting in the center with a continuous vertical magnetic seal strip.
-
Best Architectural Applications: Purpose-built for wide-span double windows, French windows, and wide bi-fold servery configurations spanning up to several meters in width.
-
Key Technical Highlights: Center-meeting magnetic closure, dual independent cord-tensioning systems, and full flexibility to slide one or both panels as required by the window opening.
3. Motorised & Large-Format Window Screens
While manual pull-across and pull-down screens are ideal for standard residential windows, modern architectural trends increasingly feature expansive, large-format glass installations—including multi-panel bi-fold windows, corner sliding systems, and double-height openings. Operating manual screens over spans exceeding 3 meters can prove unwieldy.
Motorised Retractable Screens represent the pinnacle of automated home comfort, bridging the gap between grand architectural scale and operational convenience.
Key Advantages of Automated Motorised Systems:
-
Unrivalled Span Capabilities: Single-unit motorised screens can seamlessly span widths up to 6.5 meters and heights up to 4 meters without center mullions or visual breaks, preserving uninhibited outdoor views.
-
Smart Home & Automation Integration: Equipped with quiet tubular motors (e.g., Somfy® or RTS technology), these screens integrate effortlessly into home automation hubs, smartphone apps, wall switches, and voice assistants (Apple HomeKit, Google Assistant, Amazon Alexa).
-
Zip-Track Edge Retention Technology: To withstand wind pressure across large surface areas, motorised systems employ welded zip edge-retention technology. The screen edges are locked securely into vertical side channels, preventing mesh blowout even in strong coastal breezes.
-
Automated Weather & Safety Sensing: Integrated sun, wind, and obstacle sensors automatically adjust the screen position. If an obstruction is detected during lowering, the motor automatically stops and reverses to prevent damage or injury.
4. Precision Measurement Guide (How to Measure)
Retractable screens are custom manufactured to the exact millimeter. Achieving a flawless installation requires accurate site assessment and precise measurement techniques. Always use a heavy-duty steel tape measure (never a flexible fabric tape) and record all dimensions in millimeters (mm).
Step 1: Choose Your Mounting Configuration
-
Recess Mount (In-Frame): The screen system is fitted entirely inside the window jamb depth. Provides a flush, integrated appearance. Requires a minimum frame depth (typically 40mm – 65mm depending on cassette size). Measure internal reveal dimensions and take the smallest width and height.
-
Face Mount (On-Frame / Wall): The screen is mounted onto the front face of the window frame or surrounding architrave/wall. Used when recess depth is insufficient or window handles protrude. Measure the outer edge-to-edge area requiring coverage.
Step 2: Executing the 3-Point Measurement Protocol
-
Width Measurement (Horizontal): Measure the width across three distinct points: Top (A), Middle (B), and Bottom (C). For Recess Mounting, record the smallest of the three dimensions.
-
Height Measurement (Vertical): Measure the height across three distinct points: Left (D), Center (E), and Right (F). For Recess Mounting, record the smallest of the three dimensions.
-
Diagonal Squareness & Clearance Check: Measure diagonally from top-left to bottom-right, and top-right to bottom-left. A variance greater than 5mm indicates an out-of-square opening. Adjustments using packing shims may be required during installation. Verify handle clearances.
⚠️ Crucial Ordering Rule: Do NOT apply manual deductions or tolerances when placing your order. Enter your exact measured millimetre dimensions. The manufacturer’s automated machinery applies standard manufacturing tolerances (2–3mm) to guarantee a precise fit.
5. Cleaning, Care, and Preventive Maintenance
Regular maintenance prevents dust accumulation, maintains smooth sliding action, and preserves mesh clarity.
1. Regular Mesh Cleaning Routine (Bi-Weekly)
-
Fully extend the screen and lock it in position.
-
Using a vacuum cleaner fitted with a soft brush attachment, gently sweep the mesh vertically from top to bottom on low suction.
-
Wipe the mesh lightly using a damp microfiber cloth.
2. Deep Washing Protocol (Seasonal / Every 3 Months)
-
Prepare a cleaning solution of warm water mixed with a mild, pH-neutral dishwashing liquid.
-
Gently wash the mesh using a soft sponge or cloth. Apply minimal pressure.
-
Wipe down with a second cloth dampened with clean water to remove soap residue.
-
CRITICAL STEP: Allow the mesh to dry completely in the extended position before retracting. Retracting wet mesh into the cassette traps moisture inside the housing, promoting mold growth, unpleasant odors, and internal spring degradation.
3. Track & Mechanical Lubrication (Semi-Annual)
-
Clean top and bottom guide tracks using a narrow nozzle vacuum attachment or small brush.
-
Apply a light coating of Dry Silicone Spray directly inside the side channels.
-
Warning: Never use wet petroleum-based lubricants such as standard WD-40 or grease, as they attract grit and damage bearings.
6. Summary Comparison Matrix
| Product Model | Motion Direction | Mesh Style | Max Span Suitability | Ideal Window Type |
| Pull-Across Roller Screen | Horizontal | Flat Fiberglass | Single (up to 1.5m) | Casement, Sliding, Servery |
| Pull-Down Roller Screen | Vertical | Flat Fiberglass | Single (up to 1.8m) | Awning, Double-Hung, Hopper |
| Pull-Down Pleated Screen | Vertical | Pleated Polyester | Single (up to 1.8m) | Awning, Tilting, Sash |
| Single Pleated Screen | Horizontal | Pleated Polyester | Medium (up to 2.5m) | Casement, Timber Frame |
| Double Pleated Screen | Horizontal (Center-Meeting) | Pleated Polyester | Wide (up to 9.0m) | French Windows, Wide Servery |
| Motorised Zip Screen | Vertical / Horizontal | Zip-Retained Mesh | Extra-Large (6.0m+) | Bi-Fold, Multi-Stacker, Alfre |
